How to get the position/index of xtick in matplotlib using tags? (Python 3.6 | Matplotlib 2.0)
I’m trying to get an area dedicated to a drawing for a specific xtick
tag (excluding marker size). For example, label=
‘b’ seems to have (0.5 - 1.5)
b/c tick position is 1 while I believe the default tick width is 1
.
My question is, if I have a query_label (e.g. query_label= "c"
), how can I get the tick position
query_label
along the x-axis
and
tick width
Don’t assume that each tick
position is separated by a width of 1 (e.g. [-1, 0, 1, 2, ...]
)?
Basically, I want to end :
query_position = (1.5, 2.5) # for query_label = "c"

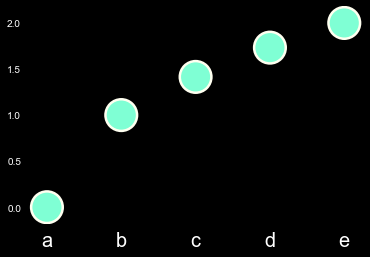

Simple sample code:
# Data
x = np.arange(5)
y = np.sqrt(x)
s = [1000]*5
c = ["aquamarine"]*5
# Plot
with plt.style.context("dark_background"):
fig, ax = plt.subplots()
ax.scatter(x, y, c=c, s=s, edgecolors="ivory", linewidth=2.5)
ax.set_xticklabels(list("-abcde"), fontsize=20)
ax.grid(False, which="major")
# Trying to get the xtick info
ax.get_xticks()
# array([-1., 0., 1., 2., 3., 4., 5.])
# How to get position and tick width?
query_label= "c"
def get_position(query_label, ax):
# stuff to get tick index
# stuff to get tick width
tick_padding = tick_width/2
return (tick_index - tick_padding, tick_index + tick_padding)
# Results
query_position = get_position(query_label, ax)
query_position
# (1.5, 2.5)
Maybe there is something similar to pd in matplotlib
. Index(list("-abcde")).get_loc("c")
?
Solution
I’m not sure if there’s a way, but you can generate a dictionary using ax.get_xticklabels()
and it will return a list of xticklabel
objects.
x_labels = list(ax.get_xticklabels())
These objects contain labels and their locations, which you can extract into a dictionary using list understanding.
x_label_dict = dict([(x.get_text(), x.get_position()[0]) for x in x_labels])
If you want to exclude some tick labels, you can use the if condition:
x_label_dict = dict([(x.get_text(), x.get_position()[0]) for x in x_labels if x.get_text() not in ['', '-']])
The width of each tick label can now be determined as :, using adjacent query labels
tick_width = x_label_dict['b'] - x_label_dict['a']
So the query position of 'c'
becomes
x_label_dict['c'] - tick_width/2, x_label_dict['c'] + tick_width/2
Once you’ve decided on tick_width, you can update the dictionary so you can use it directly without the need for a function definition
x_query_position = {key: (x_label_dict[key]- tick_width/2, x_label_dict[key] + tick_width/2) for key in x_label_dict.keys()}
I guess the query location for 'c
‘ is x_query_position['c']
