Standardize histograms using matplotlib
I want to
plot the histogram with Matplotlib, but I want the value of bin to represent a percentage of the total observations. The MWE will look like this:
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
import matplotlib.pyplot as plt
import matplotlib.ticker as tck
import seaborn as sns
import numpy
sns.set(style='dark')
imagen2 = plt.figure(1, figsize=(5, 2))
imagen2.suptitle('StackOverflow Matplotlib histogram demo')
luminance = numpy.random.randn(1000, 1000)
# "Luminance" should range from 0.0...1.0 so we normalize it
luminance = (luminance - luminance.min())/(luminance.max() - luminance.min())
top_left = plt.subplot(121)
top_left.imshow(luminance)
bottom_left = plt.subplot(122)
sns.distplot(luminance.flatten(), kde_kws={"cumulative": True})
# plt.savefig("stackoverflow.pdf", dpi=300)
plt.tight_layout(rect=(0, 0, 1, 0.95))
plt.show()

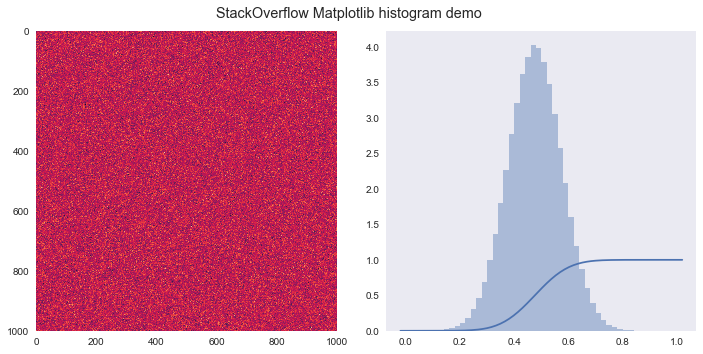

Here the CDF is OK (range: [0, 1]), but the histogram I get is not what I expected:

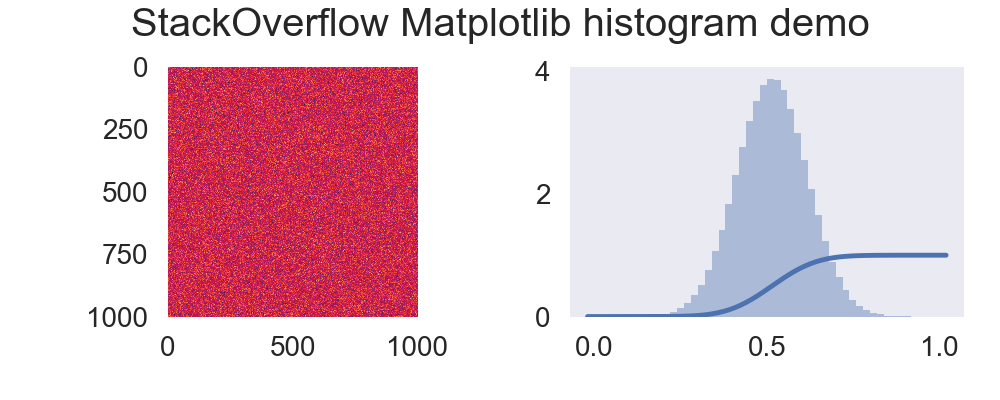

Why are the results of the histogram in the range [0, 4]? Is there any way to solve this problem?
Solution
What do you think you want
Here’s how to plot the histogram so that the bins sum to 1:
import matplotlib.pyplot as plt
import matplotlib.ticker as tck
import seaborn as sns
import numpy as np
sns.set(style='dark')
imagen2 = plt.figure(1, figsize=(5, 2))
imagen2.suptitle('StackOverflow Matplotlib histogram demo')
luminance = numpy.random.randn(1000, 1000)
# "Luminance" should range from 0.0...1.0 so we normalize it
luminance = (luminance - luminance.min())/(luminance.max() - luminance.min())
# get the histogram values
heights,edges = np.histogram(luminance.flat, bins=30)
binCenters = (edges[:-1] + edges[1:])/2
# norm the heights
heights = heights/heights.sum()
# get the cdf
cdf = heights.cumsum()
left = plt.subplot(121)
left.imshow(luminance)
right = plt.subplot(122)
right.plot(binCenters, cdf, binCenters, heights)
# plt.savefig("stackoverflow.pdf", dpi=300)
plt.tight_layout(rect=(0, 0, 1, 0.95))
plt.show()
# confirm that the hist vals sum to 1
print('heights sum: %.2f' % heights.sum())
Output:
heights sum: 1.00
Practical answer
This one is actually super simple. That’s it
sns.distplot(luminance.flatten(), kde_kws={"cumulative": True}, norm_hist=True)

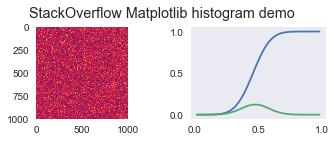

Here’s what I got when I ran the modified script above:
Surprise twist!
It turns out that your histogram has always been normalized by official logo:
In plain English, it is common practice to normalize histograms of continuous values (i.e., their observations can be represented as floats) based on density. So in this case, the sum of the bin width multiplied by the bin height will be 1.0, as you can see by running this simplified version of the script:
import matplotlib.pyplot as plt
import matplotlib.ticker as tck
import numpy as np
imagen2 = plt.figure(1, figsize=(4,3))
imagen2.suptitle('StackOverflow Matplotlib histogram demo')
luminance = numpy.random.randn(1000, 1000)
luminance = (luminance - luminance.min())/(luminance.max() - luminance.min())
heights,edges,patches = plt.hist(luminance.ravel(), density=True, bins=30)
widths = edges[1:] - edges[:-1]
totalWeight = (heights*widths).sum()
# plt.savefig("stackoverflow.pdf", dpi=300)
plt.tight_layout(rect=(0, 0, 1, 0.95))
plt.show()
print(totalWeight)
And totalWeight
does equal exactly 1.0
, with a bit of rounding error.
